AWWA C504

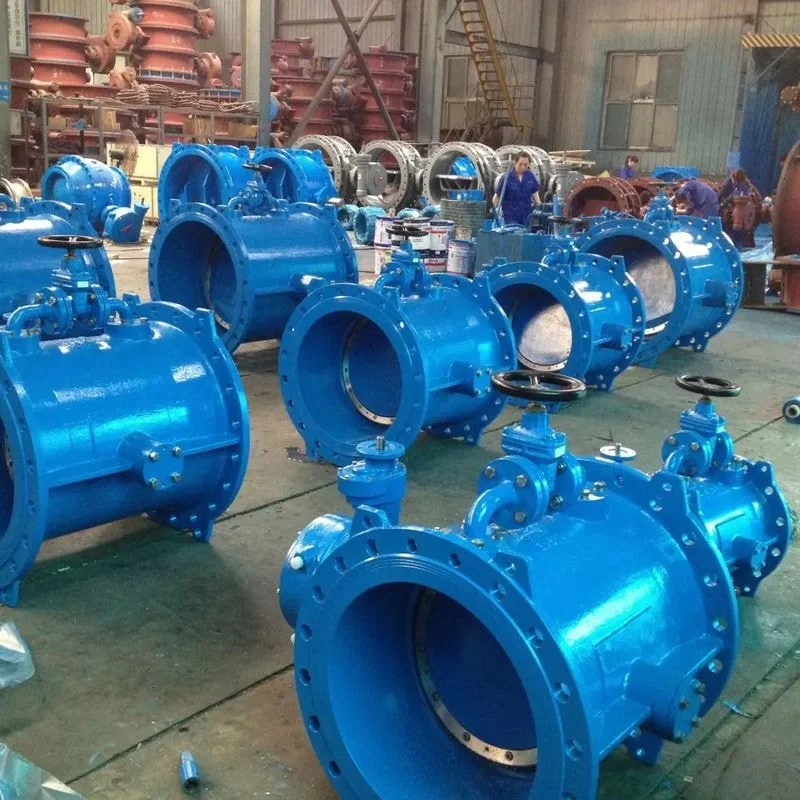

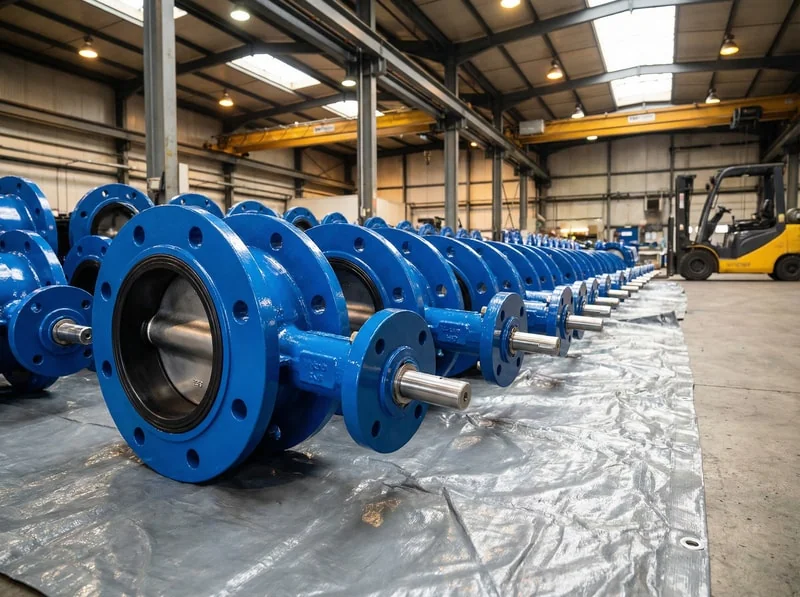

Butterfly Valve
Fully Compliant with AWWA C504 Class 75B / 150B / 250B, Designed for Reliable Shut-off in Water Supply, Pump Stations, and Transmission Pipelines

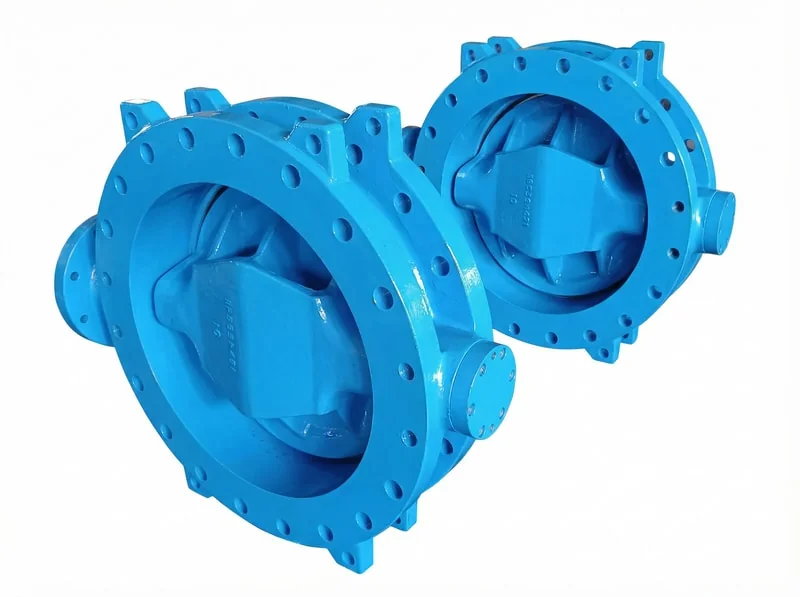

Engineered for large-diameter water infrastructure, this AWWA C504 butterfly valve delivers zero-leakage bidirectional sealing, low head loss, and long service life. Ideal for waterworks, pump stations, reservoirs, and municipal transmission mains.
Size Range
DN350 ~ DN4000
14" ~ 160"
Leakage Rate
Zero Leakage
Class A, Bidirectional
Coating
WRAS / NSF Epoxy
Potable water approved
Flow Design
Low Head Loss
Energy-efficient operation
Product Overview
Find the technical, compliance, and project information you need for valve selection and procurement.
Designed for Water Infrastructure Applications
Engineered specifically for large-diameter water systems where reliable shut-off, low head loss, and long service life are critical.

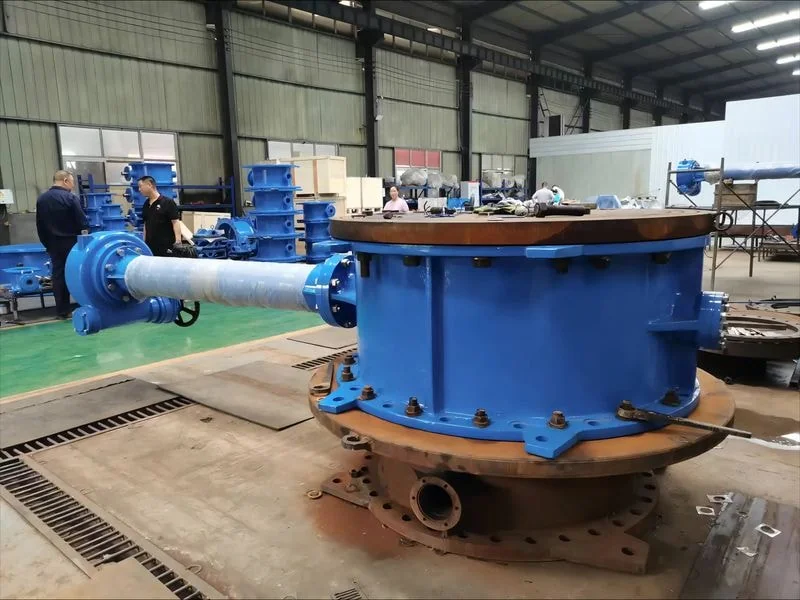

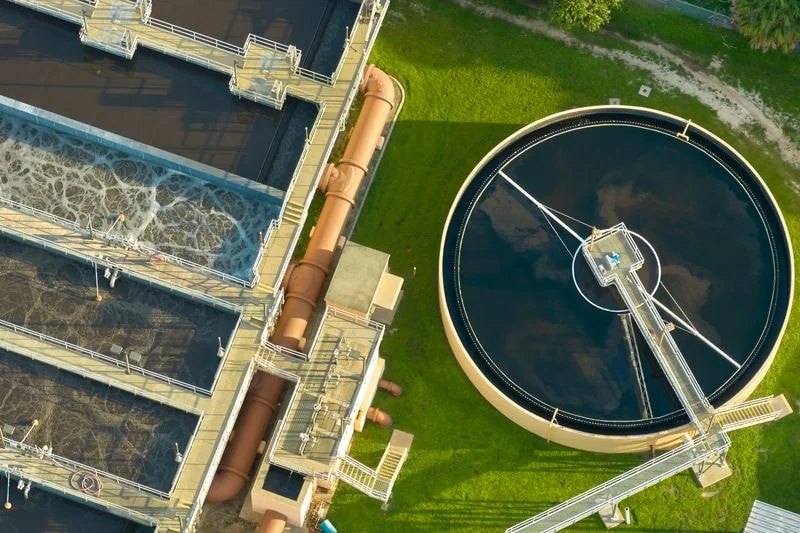

Municipal Water Supply Systems
Used in distribution networks and trunk pipelines for potable water delivery to urban and rural communities.
Ensures reliable shut-off with zero leakage

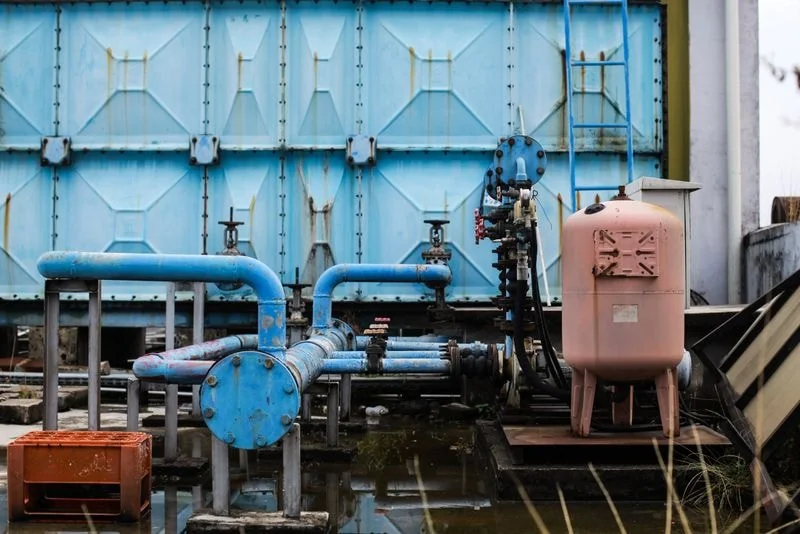

Pump Stations
Installed at the inlet and outlet of pumps for flow isolation, pressure regulation, and maintenance shut-off.
Low head loss design helps reduce energy consumption

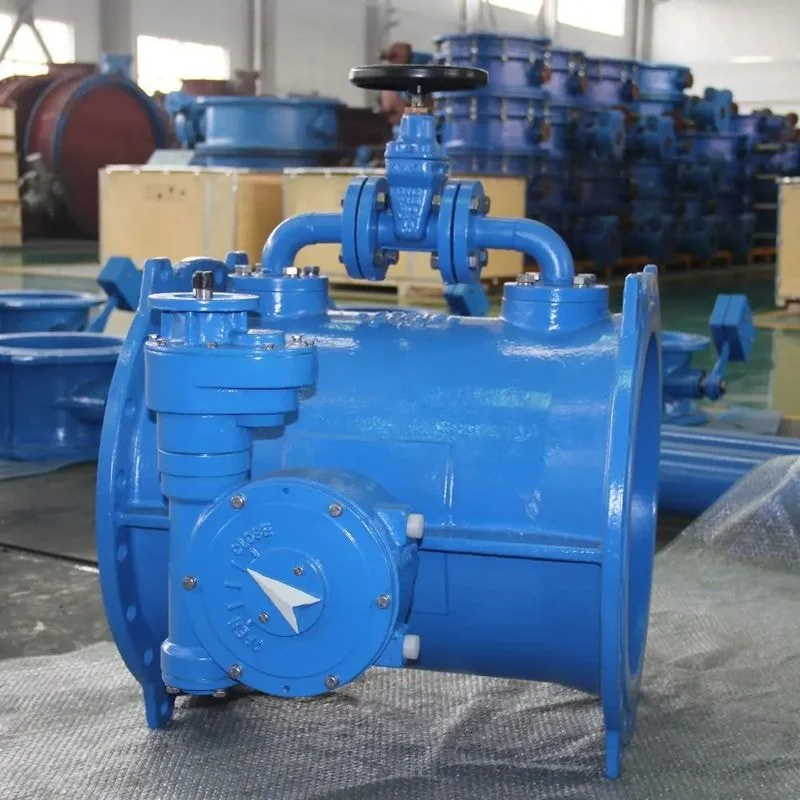

Transmission Pipelines
Applied in large-diameter, long-distance water transmission mains handling high flow volumes across regional networks.
Stable performance under high flow conditions

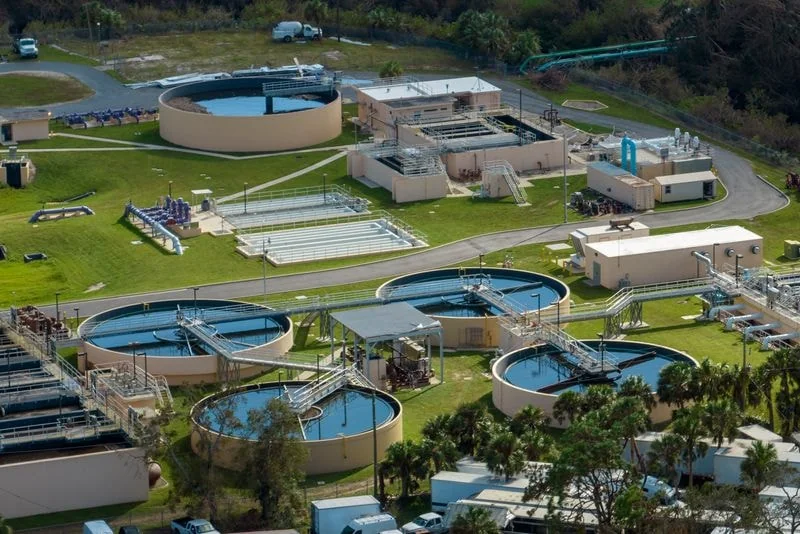

Wastewater Treatment Plants
Suitable for treated effluent and low-corrosive media in various stages of wastewater processing and discharge.
Corrosion-resistant materials ensure long service life
Desalination Projects
Available with nickel aluminum bronze body and special alloy components for seawater intake and brine discharge systems.
Enhanced resistance to seawater corrosion
Have a Specific Project?
Share your pipeline size, pressure class, and media details. Our engineers will recommend the right AWWA C504 configuration.
Talk to an EngineerFully Compliant with AWWA C504 Standard
Our butterfly valves are designed, manufactured, and tested in strict accordance with AWWA C504 requirements to ensure reliable performance in municipal water projects.
| AWWA C504 Requirement | Our Valve Performance |
|---|---|
| Design Standard | Fully compliant with AWWA C504 |
| Pressure Class | Class 75B / 150B / 250B available |
| Leakage Standard | Class A (Zero Leakage, bidirectional) |
| Hydrostatic Test | 100% tested before delivery |
| Cycle Test | Tested per AWWA requirements |
Ready for project submittal. We provide full material test reports (MTR), hydrostatic test certificates, and compliance documentation for your engineering review and approval process.
Why Engineers Specify Our AWWA C504 Valve
Performance built for project approval and long-term reliability
Zero Leakage Performance
Designed to meet Class A leakage requirement with bidirectional sealing, ensuring reliable shut-off even under full rated pressure.
Class A = Zero allowable leakage in both flow directions
Pressure Class Coverage
Available in Class 75B, 150B, and 250B to meet different system pressure requirements in water infrastructure projects.
Full Testing Compliance
Each valve is subjected to hydrostatic pressure testing and leakage testing before shipment to ensure compliance with AWWA standards.
MTR + hydrostatic test certificate included with every order
Need Compliance Documents for Your Project?
We provide full AWWA C504 test reports, MTR, and compliance certificates for engineering review.
Design Features
Every component is carefully engineered to meet the operational demands of large-diameter water systems, ensuring stable performance, easy maintenance, and reduced lifecycle cost.
7
Key Features
DN4000
Max Size
30+
Years Service Life
360° Replaceable Rubber Seat
Full-circle rubber seat securely fixed with a retainer ring, ensuring continuous sealing contact across the entire circumference.
Two-Piece SS630 Shaft Design
Stub shaft design reduces friction and ensures smooth operation with improved mechanical strength for reliable actuator integration.
Low Head Loss Disc Design
Optimized disc profile delivers a higher flow coefficient (Cv), reducing pressure drop and improving overall flow efficiency across the system.
Maintenance-Free Bearing System
Aluminium bronze bushings provide high strength and wear resistance with no lubrication required, delivering long-term stable operation.
Reliable Shaft Sealing System
Multiple O-rings combined with V-type packing ensure tight sealing around the shaft area, with online adjustment capability for minimal downtime.
Replaceable & Adjustable Packing
Extended top bracket allows easy access to packing. Adjust or replace without removing actuator, reducing maintenance complexity in the field.
Flexible Disc Structure (Solid / Lattice)
Available in solid disc or lattice disc for large sizes. Lattice design reduces weight and operating torque while maintaining structural integrity.
Material & Coating Options
Material selection directly impacts valve service life and corrosion resistance in water systems. We provide multiple material and coating options to match different project conditions.
Standard Configuration
Municipal WaterBest for: General water supply and distribution systems
Reliable and cost-effective for general water supply
Coating Protection
Potable WaterBest for: Potable water and wastewater service
Contact us for coating certification details
Corrosion-Resistant Options
Seawater ServiceBest for: Seawater intake, brine discharge, and desalination
Designed for desalination and marine projects
Materials of Component
Premium materials selected for durability and long service life in water infrastructure applications

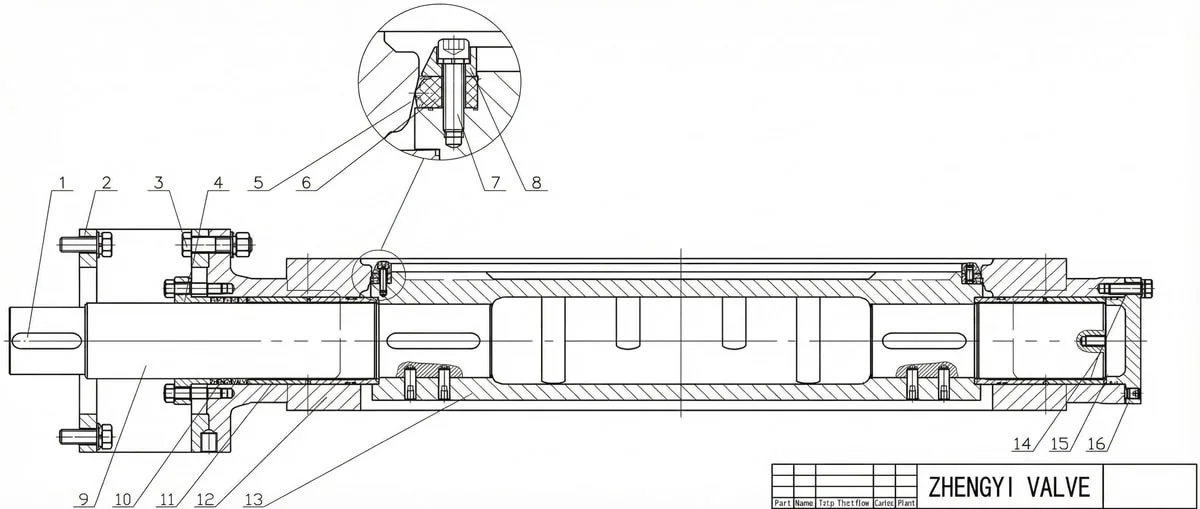

Cross-section view with part numbers corresponding to the material list below
Material configuration can be customized based on medium, temperature, and project approval requirements.
Technical Specifications & Dimensions
Available in a wide range of sizes and pressure classes, these valves are designed to meet AWWA C504 requirements for water system applications. Detailed dimensions are provided below for engineering selection.
| Size (inch) | Pressure Class | D1 (mm) | D2 (mm) | L (mm) | D (mm) | Bolt (N-Ø) |
|---|---|---|---|---|---|---|
| 6" | 150B | 280 | 241 | 127 | 25.5 | 8-Ø23 |
| 6" | 250B | 320 | 270 | 203 | 36.5 | 12-Ø23 |
| 8" | 150B | 345 | 299 | 152 | 29 | 8-Ø23 |
| 8" | 250B | 380 | 330 | 216 | 41.5 | 12-Ø29 |
| 10" | 150B | 405 | 362 | 203 | 30.5 | 12-Ø26 |
| 10" | 250B | 445 | 387 | 381 | 48 | 16-Ø32 |
| 12" | 150B | 485 | 432 | 203 | 32 | 12-Ø26 |
| 12" | 250B | 520 | 451 | 381 | 51 | 16-Ø32 |
| 14" | 150B | 535 | 476 | 203 | 32.5 | 12-Ø29 |
| 14" | 250B | 585 | 514 | 406 | 54 | 20-Ø35 |
| 16" | 150B | 595 | 540 | 203 | 36.5 | 16-Ø29 |
| 16" | 250B | 650 | 572 | 406 | 57.5 | 20-Ø35 |
| 18" | 150B | 635 | 578 | 203 | 40 | 16-Ø32 |
| 18" | 250B | 710 | 629 | 406 | 60.5 | 24-Ø35 |
| 20" | 150B | 700 | 635 | 203 | 43 | 20-Ø32 |
| 20" | 250B | 775 | 686 | 457 | 63.5 | 24-Ø35 |
| 24" | 150B | 815 | 749 | 203 | 48 | 20-Ø35 |
| 24" | 250B | 915 | 813 | 457 | 70 | 24-Ø42 |
Need dimensions for other sizes or pressure classes? We can provide GA drawings and dimension sheets for any size from DN150 to DN4000. Contact our engineering team with your project specifications.
Dimensions are for reference only. Detailed drawings and customized configurations are available upon request.

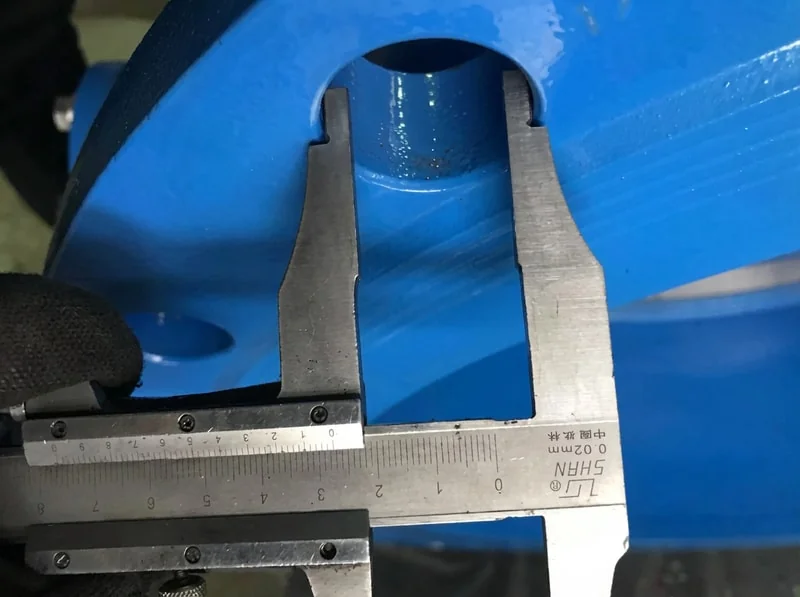

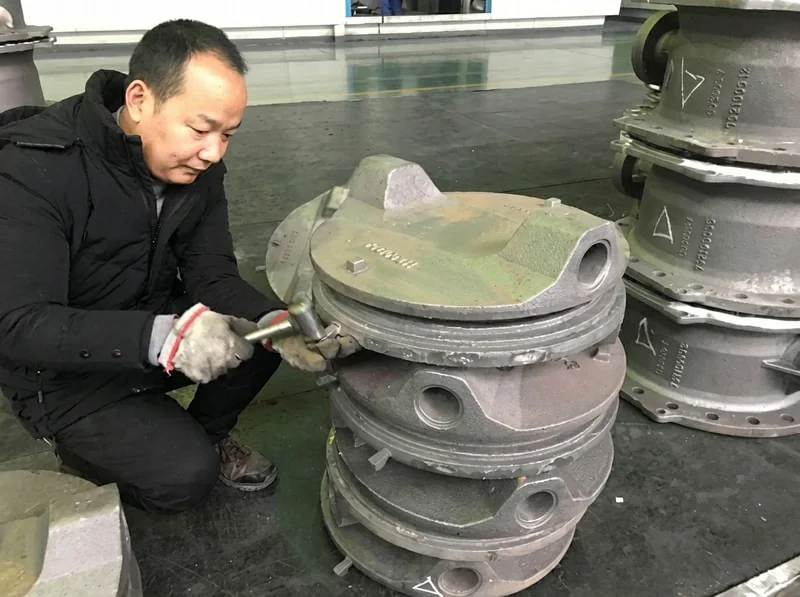

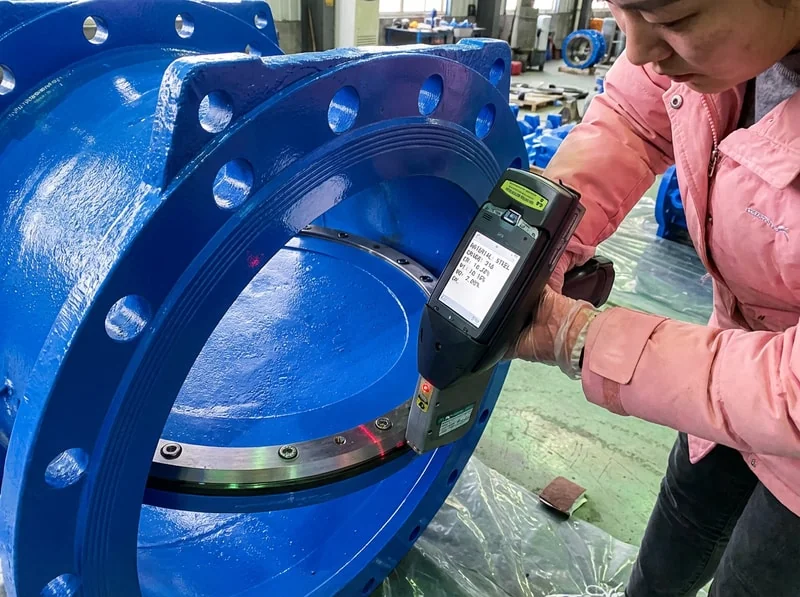

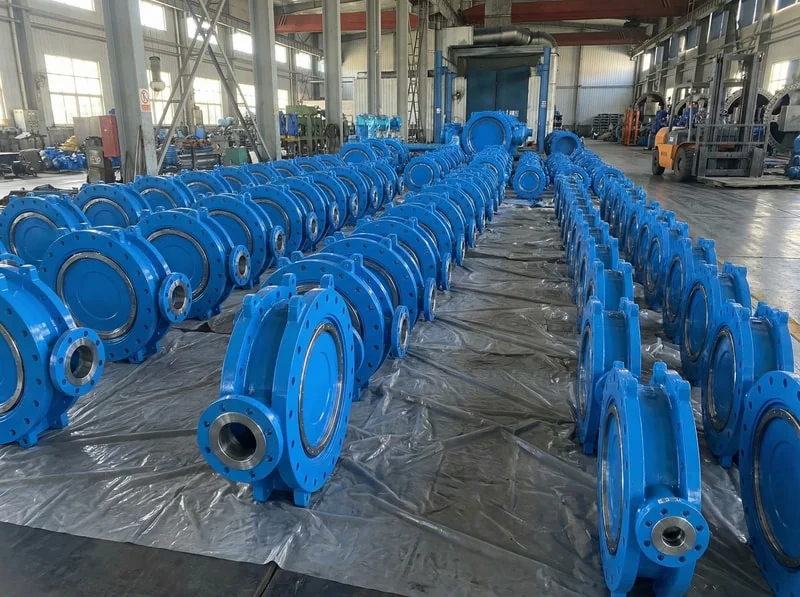

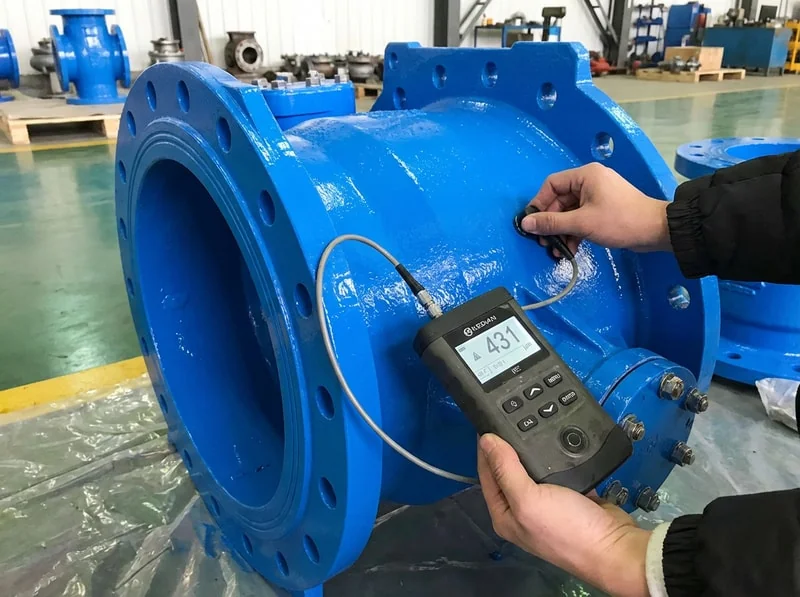

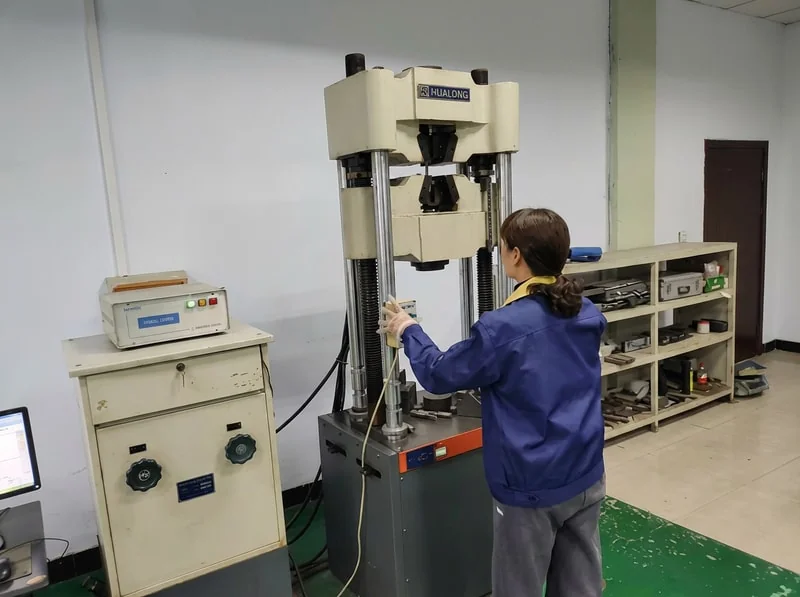

Testing & Quality Assurance
Each valve is tested in accordance with AWWA C504 requirements to ensure reliable performance and zero leakage before delivery.

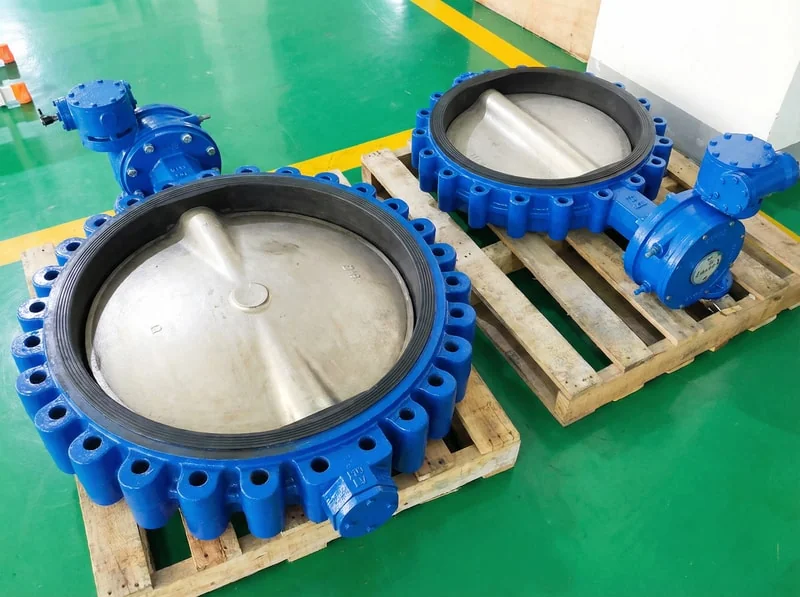

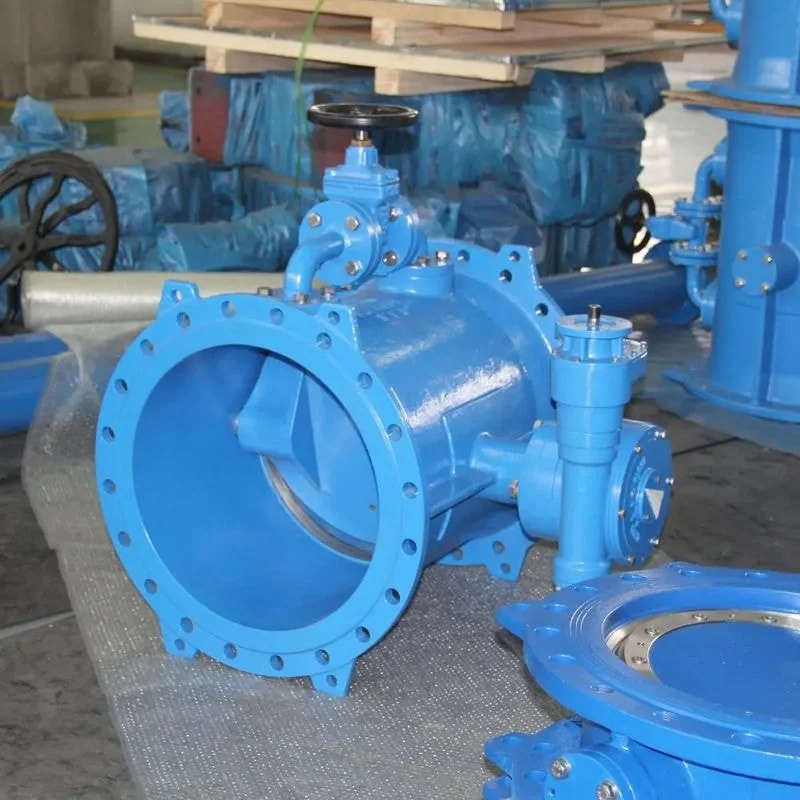

Project References
Our butterfly valves are widely used in municipal water and pipeline projects worldwide.
What Our Customers Say
Real feedback from engineers, procurement managers, and project teams using our AWWA C504 butterfly valves.
"We used their AWWA C504 butterfly valves for a municipal water project. The valves passed hydrostatic and leakage tests without any issues. Documentation was complete, which helped us during project approval."
EPC Contractor
Municipal Water Project, Middle East
"I was mainly concerned about sealing performance and torque for large sizes. After installation, the valves operated smoothly and sealing performance was stable under working pressure."
Project Engineer
Water Infrastructure, Southeast Asia
"Delivery time was as committed, and communication was clear during production. We also received all required test reports and drawings before shipment, which made the inspection process easier."
Procurement Manager
Pipeline Project, Africa
"The valves have been in operation for over a year in our water pipeline system. So far, no leakage or maintenance issues have been observed, which is important for our operation."
Operations Manager
Water Utility, South America
Frequently Asked Questions
Technical and commercial questions engineers and procurement teams commonly ask about our AWWA C504 butterfly valves.
Request a Quote
Share your project specifications and our engineering team will respond with a detailed AWWA C504 valve proposal within 24 hours.
Response within 24 hours
Free engineering consultation and valve selection support
Full AWWA C504 compliance documentation available
NDA available upon request
Send Your Inquiry
